Product Brief Introduction

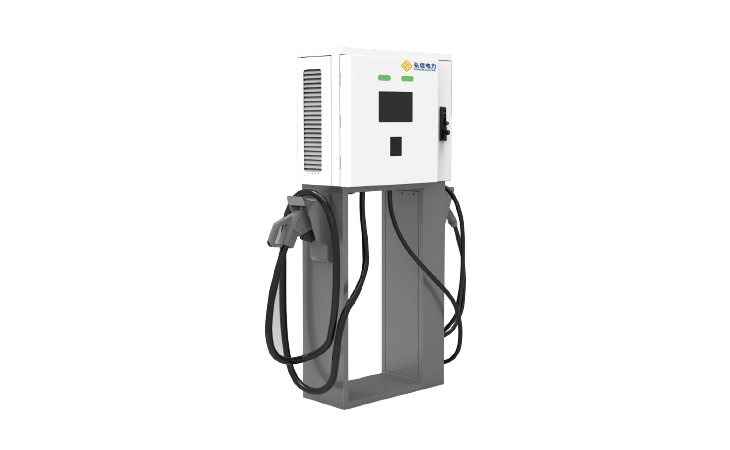

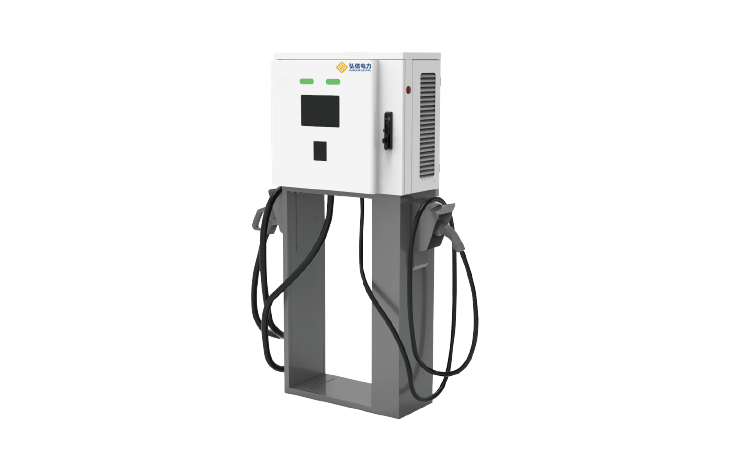

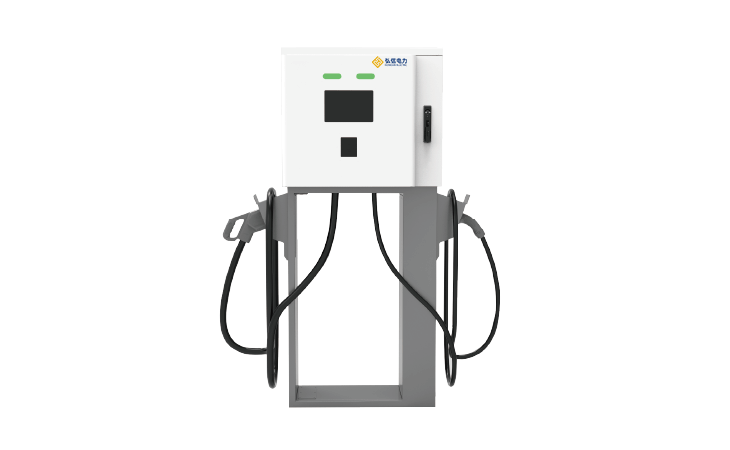

A new generation of low-power electric vehicle DC constant power fast charging pile. Wall hanging, column or mobile installation design, highly integrated small size design, fast portable installation, meet the IP54 outdoor use protection level. Dc 150VD-750VDC charging output, 400VD-750VDC constant power output, maximum output current 100A. Support column and mobile structure accessories optional, can be widely used in industrial and commercial parks, residential parking lot and other destination scenes.
Technical Features
Dc fast charge
  • Single gun maximum 100A current output, DC 150VD-750VDC charging output, 400VD-750VDC constant power output, charging power up to 40KW;
  • Meet the national standard, State grid, Southern network, and provincial and municipal standards on electric vehicle charging devices. Compatible with national standard 2011/2015.
Flexible installation
  • Adapt to outdoor installation and use, fully consider the characteristics of outdoor application environment in the design process;
  • Optional 40KW/60KW/20KW power configuration, optional wall hanging, column, mobile and other installation methods.
Safety escort
  • IP54 protection grade design, fully equipped with positive and negative bus DC contactor and safety, emergency stop protection switch, input lightning protection device, leakage switch, grounding and insulation detection and monitoring safety protection devices;
  • With system alarm, system log, charging record and BMS communication data storage and other functions, to meet the remote data reading and software upgrade functions.
Intelligent operation
  • Provide network monitoring function, remote monitoring can be achieved through wired LAN,4G wireless router, etc.
  • Support mobile phone billing function and RF card payment management function. With automatic, fixed time, fixed amount, fixed power, fixed SOC and other charging settlement mode.
Technical Parameters
specification parameter
electrical specificationRated Power40KW
rated output current132A
input voltageAC400V±15%
incoming frequency50HZ
Rated output voltage150-1000V
Constant power interval voltage300-750V
voltage accuracy≤±0.5%
Current accuracy (current regulation)≤±1%
harmonic coefficient≤±0.5%
Maximum module efficiency≥95%
Power Factor＞0.99
environmental conditionsWorking Temperature-30℃～＋55℃
operating humidity5%~95% （Without Condensation）
Altitude≤2000m（Derating over 2000m）
Level Of ProtectionIP54
type of coolingair cooling
noise control＜50 db
structural featureEquipment size (L * W * H)600mm×700mm×363mm
Cabinet materialmetal
installation methodfloor mount
cable length5m
Product Featurescharging modeAutomatic charging, according to the amount/power, timed charging
communication interfacePLC, CAN, Wifi, 3G, 4G
user interfacetouch screen
display screen7" LCD screen
mobile paymentsupport
APP controlsupport
LED Lightsupport
Emergency Stop Buttonsupport
remote upgradesupport
background monitorOCPP1.6 JSON is supported
safety requirementsdefensive functionOvervoltage protection, undervoltage protection, overload protection, short circuit protection, leakage protection, grounding protection, high temperature protection, low temperature protection, lightning protection
according to the standardIEC-61851-1, IEC61851-21-1, IEC61851-21-2,IEC61851-22, IEC-61851-23,DIN SPEC 70121-2014,ISO 15118-3
