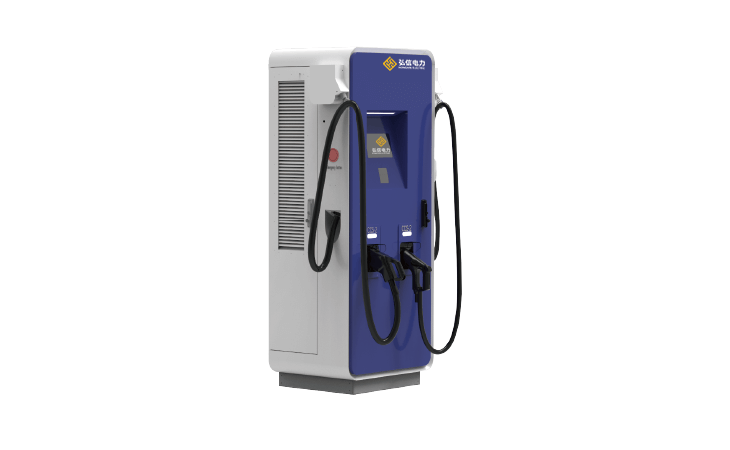

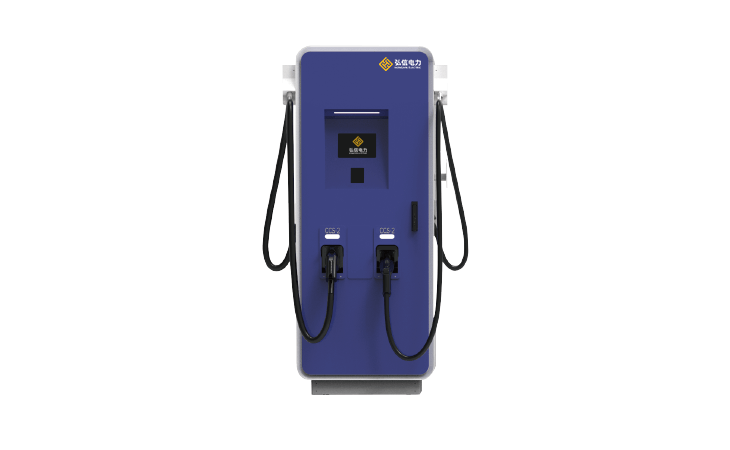

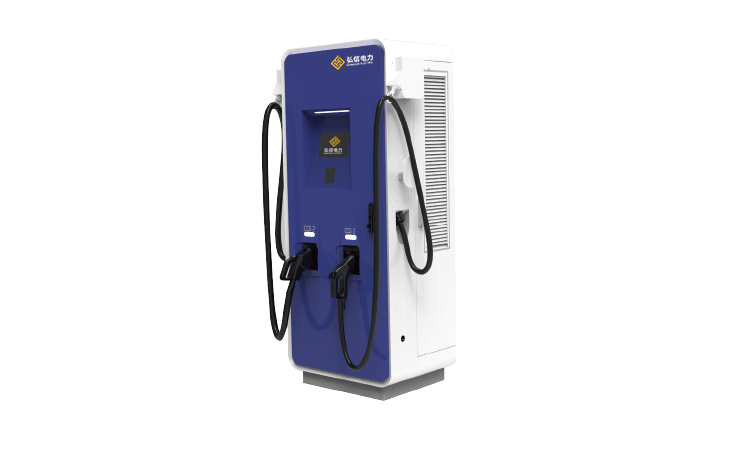

Product Brief Introduction
Applicable to all types of trams in the market, including electric cars, electric trucks, electric buses, electric yachts, electric forklifts, etc. High environmental adaptability, the housing is isolated from the charging module air to prevent heat conduction. Double layer structure and maintenance-free centrifugal fan heat dissipation more environmentally friendly; Support CCS1,Tesla,CHAdeMO, with high compatibility; Charging 20 minutes, driving 400KM, saving 97% energy efficiency; 7 "LCD touch screen to provide users with a better operating experience; Users can use RFID to start and turn off the machine; ocpp/LAN/WIFI support can provide operators with real-time information about charging stations and vehicles; Support English, French, Spanish, Italian, Russian and other multi-language customization.
Technical Features
Dc fast charge
  • Single gun maximum 100A current output, DC 2000VD-750VDC charging output, 300VD-750VDC constant power output, charging power up to 60KW;
  • Meet the national standard, State grid, Southern network, and provincial and municipal standards on electric vehicle charging devices. Compatible with national standard 2011/2015.
Safe and Reliable
  • Using isolated duct filling module, anti-corrosion, anti-dust, anti-salt spray and anti-flecking, the annual failure rate is only 1/10 in the industry;
  • G4 filter configuration, good protection effect, simple maintenance;
  • Equipped with a complete set of high-quality safety protection devices, the software and hardware have multiple defensive functions.
Intelligent ring network
  • Multi-pile ring network can be connected to realize flexible power distribution in the network and higher power output of single pile;
  • Support remote control, diagnosis and OTA upgrade.
Intelligent operation
  • Provide network monitoring function, remote monitoring can be achieved through wired LAN,4G wireless router, etc.
  • Support mobile phone billing function and RF card payment management function. With automatic, fixed time, fixed amount, fixed power, fixed SOC and other charging settlement mode.
Technical Parameters
specification parameter
electrical specificationRated Power60KW80KW100kW
rated output current200A200A200A
input voltageAC380V+15%
incoming frequency50HZ
Rated output voltage200-750V
Constant power interval voltage300-750V
voltage accuracy≤+0.5%
Current accuracy (current regulation)≤+1%
harmonic coefficient≤+0.5%
Maximum module efficiency≥95%
Power Factor>0.99
environmental conditionsWorking Temperature-30°C~+55°C
operating humidity5%-95%（Without Condensation）
Altitude≤2000m（Derating over 2000m）
Level Of ProtectionP54
type of coolingair cooling
noise control＜50 db
structural featureEquipment size (L * W * H)1880mmx750mmx580mm
Cabinet materialmetal
installation methodfloor mount
cable length5m
Product Featurescharging modeAutomatic charging, according to the amount/power, timed charging
communication interfacePLC, CAN, Wifi, 3G, 4G
LED Lightsupport
Emergency Stop Buttonsupport
background monitorOCPP1.6JSON is supported
safety requirementsdefensive functionOvervoltage protection, undervoltage protection, overload protection, short circuit protection, leakage protection, grounding protection, high temperature protection, low temperature protection, lightning protection
according to the standardIEC-61851-1.1EC61851-21-1,IEC61851-21-2.IEC61851-22.IEC-61851-23,DINSPEC70121-2014.ISO15118-3
