Product Brief Introduction

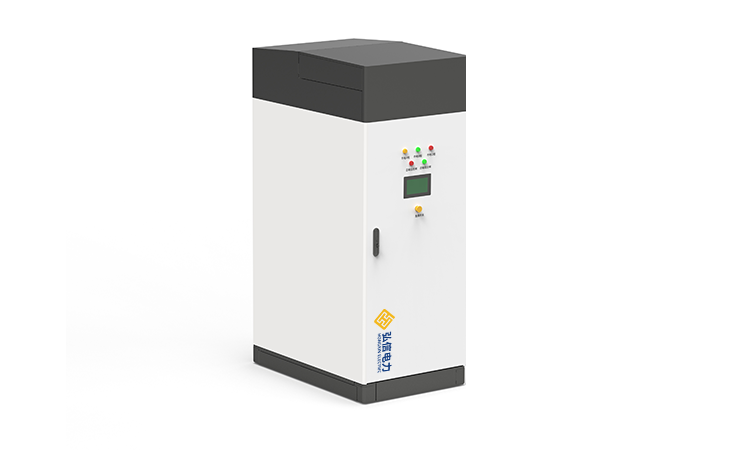

Hongxin single cabinet outdoor cabinet products use high-performance LFP cell, cycle life up to 8000 times. Products adopt an active balance solution, built-in cloud equipment, support remote maintenance and monitoring, and fully control the system status. With a single product capacity of up to 215kWh, it is particularly suitable for demonstration projects, demonstration projects and other applications. The product adopts the integrated transportation scheme, the site construction is simple, and the site construction period and cost can be greatly shortened.
Technical Features
Modular Design
  • Modular design, integrated transportation, simple and convenient.

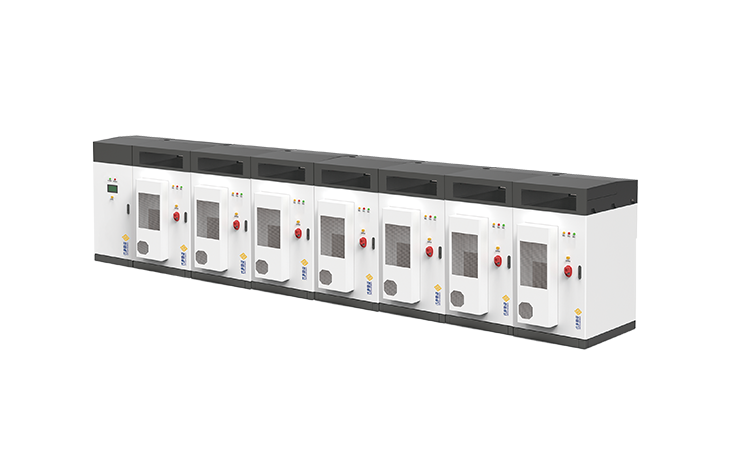

  • Supports parallel use of multiple machines.
Flexible Configuration
  • Intelligent battery constant temperature control, high protection structure design, to meet the outdoor use;
  • Built-in EMS, a variety of operating modes to choose from.
Cloud Technology
  • Support cloud technology, support remote monitoring;
  • The battery is 100%DOD deep discharge, and the cycle life under standard working conditions exceeds 6500 times;
Safe and Reliable
  • System hierarchical linkage protection, to ensure the overall security of the system;
  • C5 anti-corrosion grade design to meet a variety of application environments;
Technical Parameters
Product ModelESS100-215
Full Capacity215kWh
Configurable Capacity200/215kWh
Cell ParameterLFP-3.2V-280Ah-896Wh
Module ParameterLFP-51.2V-280Ah-14.336kwh
DC(direct current)145A
Dc Voltage Range650~900Vdc
Charge And Discharge Ratio0.5CP
Cycle Life8000 times(90%DOD,≥70%EOL)
BMS SchemeActive equalization
Communication InterfaceEthernet/RS-485/CAN
Communication ProtocolModbus-TCP/IEC61850/104
Temperature Control SchemeIntelligent variable frequency air cooling
Fire Protection SchemeGas/smoke/temperature detection + perfluorohexanone + water isolation Fire protection
Rated AC Voltage400Vac/3W+N+PE
Ac Voltage Pattern-15%~10%(Range can be set)
Rated Ac Power100kw
Rated Alternating Current145A
Output Power110kVA
Power Factor0.99(adjustable extent-1~+1)
Rated Operating Frequency50H2/60Hz（settable）
Harmonic Distortion＜3%（Rated Power）
DC Component＜0.5%
Insulation Resistance＞3MΩ
Altitude＜2000ml（2000m Derated）
Allowable Ambient Temperature-30~+55°C
Allowable Relative Humidity0~95%Rh(Without Condensation）
Level Of ProtectionIP55
Corrosion-Proof GradeC4(C5 Optional）
Size (Width * depth * height)1080*930*2450mm
Full Weight2T
Product CertificationGB/T36276、GB/T34131、GB/T34120、GB/T34133
